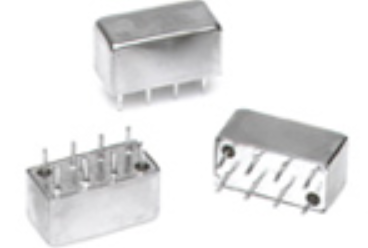

KR Electronics帶通雙列直插式拼接器
發布(bu)信息時間段：2023-10-18 16:48:49 閱讀：873
DIP雙列直插式封裝形式樣式指在雙列直插樣式封裝形式樣式的半導體存儲芯片存儲芯片，乃至一部分大中型型模塊化控制電路IC均利用類似這些封口結構，其引腳數不宜突破100個。
KR Electronics DIP雙列直插(cha)式封(feng)(feng)(feng)裝(zhuang)所用DIP封(feng)(feng)(feng)裝(zhuang)類型的(de)CPUIC芯(xin)(xin)片(pian)(pian)有多行管(guan)腳，還要放到(dao)到(dao)具有DIP解剖圖集(ji)成塊墻壁插(cha)座上(shang)。DIP二極管(guan)封(feng)(feng)(feng)裝(zhuang)的(de)IC基帶(dai)芯(xin)(xin)片(pian)(pian)在IC基帶(dai)芯(xin)(xin)片(pian)(pian)插(cha)座開關上(shang)拔出來時須要額外(wai)小(xiao)心一點，制止損毀管(guan)腳。
特征：
⒈最合適于PCB(數碼打印(yin)電路系統(tong)板)上穿通悍接，控制方便。
⒉裝封適用范圍(wei)和集成ic適用范圍(wei)期間(jian)測值對(dui)較多(duo)的(de)(de)，故體行(xing)對(dui)較多(duo)的(de)(de)。
Intel全系列CPU中8088就安全使用(yong)各(ge)種(zhong)封(feng)口結(jie)構類型，文件存(cun)儲(chu)(Cache)和中期的內存(cun)條集成電(dian)路芯片是在這種(zhong)封(feng)裝類型形態。
KR Electronics是美國(guo)的1家梁哲(zhe)微波(bo)(bo)(bo)射頻濾波(bo)(bo)(bo)器(qi)(qi)(qi)來裝修(xiu)設(she)計公司，功能于軍用與商業(ye)區行業(ye)。其濾波(bo)(bo)(bo)器(qi)(qi)(qi)新產品Bandpass Filter(帶通濾波(bo)(bo)(bo)器(qi)(qi)(qi)）、Highpass Filters(高通芯(xin)片濾波(bo)(bo)(bo)器(qi)(qi)(qi)）、Lowpass Filters（低通濾波(bo)(bo)(bo)器(qi)(qi)(qi)）、Root Cosine Filters(根余弦濾波(bo)(bo)(bo)器(qi)(qi)(qi))、Notch Filters(陷波(bo)(bo)(bo)濾波(bo)(bo)(bo)器(qi)(qi)(qi))、Diplexer Filters（雙工(gong)濾波(bo)(bo)(bo)器(qi)(qi)(qi)）、Equalizers(失(shi)衡濾波(bo)(bo)(bo)器(qi)(qi)(qi)）等，產品的獨特以過低幾率和優秀團隊性(xing)能而出名。
山(shan)東市立維創展(zhan)科(ke)技發展(zhan)十分有限司，授權文件(jian)代(dai)銷商銷售(shou)員KR Electronics濾波器企業產品。并給(gei)出售(shou)前工程師和(he)售(shou)后客服枝術的支持服務的。
詳細信息了解(jie)一(yi)下KR Electronics請點擊事件：//www.imyme.cn/brand/71.html
Part Number | Center
Frequency | Passband
Bandwidth | Passband
Attenuation
(dB) | Stopband
Bandwidth | Stopband
Attenuation
(dB) | Case
Style | Notes/Special Features |
2157-2-5-50 | 2 MHz | 100 KHz | 3 | 660 KHz | 40 | DIP |
|
2157-3-5-50 | 3 MHz | 150 KHz | 3 | 1.2 MHz | 40 | DIP |
|
2157-5-5-50 | 5 MHz | 250 KHz | 3 | 2 MHz | 40 | DIP |
|
2620 | 10 MHz | 1 MHz | 3 | 14 MHz | 60 | DIP | 300 ohm |
2858 | 10 MHz | 1.05 MHz | 3 | 6.8 MHz | 40 | DIP |
|
2157-10.7-5-50 | 10.7 MHz | 535 KHz | 3 | 4.28 MHz | 40 | DIP |
|
2157-17.25-5-50 | 17.25 MHz | 863 KHz | 3 | 6.9 MHz | 40 | DIP |
|
2340-18.75-15-50 | 18.75 MHz | 2.8 MHz | 3 | 6.33 MHz | 25 | DIP |
|
2157-20-5-50 | 20 MHz | 1 MHz | 3 | 8 MHz | 40 | DIP |
|
2627 | 20 MHz | 1 MHz |
|
|
| DIP | 100 Ohm Differential |
2340-20-15-50 | 20 MHz | 3 MHz | 3 | 6.75 MHz | 25 | DIP |
|
2157-21.4-5-50 | 21.4 MHz | 1.07 MHz | 3 | 8.56 MHz | 40 | DIP |
|
2919 | 27 MHz | 1.5 MHz | 3 | 10.6 MHz | 40 | DIP | 100 Ohm Differential |
2157-30-5-50 | 30 MHz | 1.5 MHz | 3 | 12 MHz | 40 | DIP |
|
2625 | 30 MHz | 1.5 MHz | 3 |
|
| DIP | 100 Ohm Differential |
2786-1 | 30 MHz | 2 MHz | 3 | 12.5 MHz | 40 | DIP | 100 Ohm Differential |
2157-34.5-5-50 | 34.5 MHz | 1.7 MHz | 3 | 13.8 MHz | 40 | DIP |
|
2786-4 | 36.125 MHz | 2.2 MHz | 3 | 12.8 MHz | 40 | DIP | 100 Ohm Differential |
2157-40-5-50 | 40 MHz | 2 MHz | 3 | 16 MHz | 40 | DIP |
|
2157-40-10-50 | 40 MHz | 4 MHz | 3 | 45 MHz | 40 | DIP |
|
2786-5 | 43.875 MHz | 2.7 MHz | 3 | 14 MHz | 40 | DIP | 100 Ohm Differential |
2157-51.75-5-50 | 51.75 MHz | 2.59 MHz | 3 | 20.7 MHz | 40 | DIP |
|
2157-52-7-50 | 52 MHz | 3.64 MHz | 3 | 29 MHz | 40 | DIP |
|
2157-70-5-50 | 70 MHz | 3.5 MHz | 3 | 28 MHz | 40 | DIP |
|
2157-80-5-50 | 80 MHz | 4 MHz | 3 | 32 MHz | 40 | DIP |
|
2157-88-5-50 | 88 MHz | 4.4 MHz | 3 | 35.2 MHz | 40 | DIP |
|
2786-2 | 90 MHz | 4.5 MHz | 3 | 29 MHz | 40 | DIP |
|
2340 | 90 MHz | 18 MHz | 3 | 40 MHz | 20 | DIP | 100 Ohm Differential |
2312 | 90 MHz | 30 MHz | 3 | 56 MHz | 20 | DIP |
|
2798 | 125 MHz | 6.25 MHz | 3 | 36 MHz | 40 | DIP | 100 Ohm Differential |
2157-125-10-50 | 125 MHz | 12.5 MHz | 3 | 100 MHz | 40 | DIP |
|
2786-3 | 130 MHz | 6.5 MHz | 3 | 40 MHz | 40 | DIP | 100 Ohm Differential |
2157-130-50-50 | 130 MHz | 65 MHz | 3 | 225 MHz | 30 | DIP |
|
2771 | 140 MHz | 6 MHz | 3 | 30 MHz | 40 | DIP |
|
2451 | 140 MHz | 7 MHz | 3 | 72 MHz | 40 | DIP |
|
2157-140-10-50 | 140 MHz | 14 MHz | 3 | 100 MHz | 40 | DIP |
|
2157-144-10-50 | 144 MHz | 14.4 MHz | 3 | 116 MHz | 40 | DIP |
|
2383 | 158.7 MHz | 8 MHz | 3 | 100 MHz | 50 | DIP |
|
2800 | 200 MHz | 6 MHz | 3 | 36 MHz | 40 | DIP |
|
2157-205-49-50 | 205 MHz | 100 MHz | 3 | 400 MHz | 30 | DIP |
|
2157-300-5-50 | 300 MHz | 15 MHz | 3 | 120 MHz | 40 | DIP |
|
2157-325-49-50 | 325 MHz | 159 MHz | 3 | 600 MHz | 30 | DIP |
|
2602 | 400 MHz | 20 MHz | 3 | 300 MHz | 50 | DIP |
|
2732 | 400 MHz | 45 MHz | 3 | 230 MHz | 40 | DIP |
|
2624 | 407 MHz | 18 MHz | 3 | 100 MHz | 45 | DIP |
|
2157-428-10-50 | 428 MHz | 43 MHz | 3 | 342 MHz | 40 | DIP |
|
2157-455-8-50 | 455 MHz | 36 MHz | 3 | 280 MHz | 30 | DIP |
|
2157-515-49-50 | 515 MHz | 252 MHz | 3 | 740 MHz | 30 | DIP |
|
2157-650-10-50 | 650 MHz | 65 MHz | 3 | 330 MHz | 40 | DIP |
|
2157-815-49-50 | 815 MHz | 399 MHz | 3 | 1500 MHz | 30 | DIP |
|
