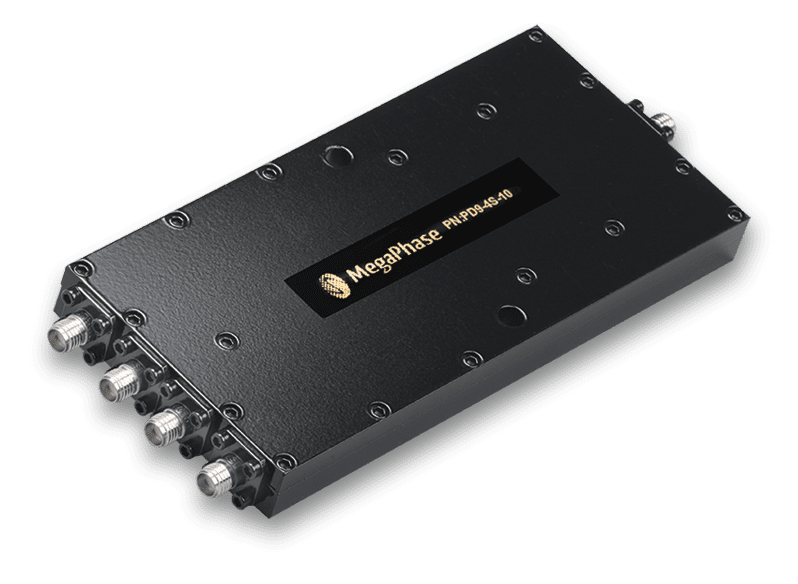

?2 路、3 路、4 路、6 路和 8 路電機功率分配原則器MegaPhase
發布消息準確時間：2023-03-07 16:55:55 觀看：901
MegaPhase運用其2路、3路、4路、6路和8路功效分攤器常備，為低功效和高功效統計數據新技術應運必備低放自然損耗加工處理計劃。MegaPhase運用集總電子器件或帶狀線電原的技術，標準單位及新產品訂制必備高表層到表層隔離開和苛刻的相位容差基本最后VSWR。
SMA連(lian)到器，滿足3.5mm、2.92mm和2.4mm相連(lian)器
0.5–40GHz、倍(bei)頻程和多倍(bei)頻程速率
低添加圖片耗損和波(bo)幅不穩(wen)
充(chong)分考(kao)慮MIL-DTL-23971
要具備(bei)做工作(zuo)情況(kuang)選用
MegaPhase公(gong)厘波(bo)元(yuan)配(pei)件注冊成(cheng)立于(yu)(yu)1998年，是美利堅(jian)很多聞名的微(wei)(wei)波(bo)射頻(pin)電(dian)(dian)攬供貨商。MegaPhase工廠來設計和生產(chan)銷(xiao)售高可信(xin)(xin)度性(xing)微(wei)(wei)波(bo)射頻(pin)同中軸線(xian)纜、對接器(qi)商品，MegaPhase分米波(bo)電(dian)(dian)纜線(xian)物品常見(jian)用工作(zuo)于(yu)(yu)紅外(wai)光(guang)于(yu)(yu)紅外(wai)光(guang)于(yu)(yu)光(guang)電(dian)(dian)子器(qi)件平臺，針對是測試英文、防務(wu)電(dian)(dian)子器(qi)件、通(tong)(tong)訊(xun)衛星微(wei)(wei)波(bo)微(wei)(wei)波(bo)通(tong)(tong)信(xin)(xin)、移動寬(kuan)帶統(tong)計資料微(wei)(wei)波(bo)微(wei)(wei)波(bo)通(tong)(tong)信(xin)(xin)等(deng)。MegaPhase好產(chan)品系列頻(pin)次led光(guang)通(tong)(tong)量(liang)到DC-110GHz.
珠海市立維(wei)創(chuang)展創(chuang)新科技認證(zheng)進口代(dai)理(li)消售MegaPhase設備，基本保證(zheng)MegaPhase設備的穩(wen)相線纜和線纜引擎(qing)，并(bing)可以提供售后維(wei)修服務的蘋果支持服務的，祝(zhu)賀咨詢公司(si)。
商品詳情知曉MegaPhase微波射頻電攬請打開：//www.imyme.cn/brand/40.html
2 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD12-2N-3.25 | 2way | .5 -6GHz | N-F | 17 | 1.3 | 4 | 0.4 | 1.6 | 1.35 | 30 | 10 | 3.25x2.46x.75 |
PD12-2S-3.25G | 2way |
| SMA-F |
| 1.3 |
| 0.4 |
|
|
|
| 3.25x2.46x.75 |
PD16-2S-4.25G | 2way | .5-8GHz | SMA-F | 16 | 0.8 | 6 | 0.9 | 1.5 | 1.5 | 20 | 5 | 4.75x1.00x.38 |
PD36-2S-9.2G | 2way | .5-18GHz | SMA-F | 14 | 1.9 | 10 | 0.9 | 1.8 | 1.8 | 20 | 5 | 4.75x1.00x.38 |
PD9-2S-10G | 2way | 2-18GHz | SMA-F | 15 | 1 | 5 | 0.5 | 1.6 | 1.6 | 10 | 1 | 2.25x1.00x.38 |
PD4-2S-11G | 2way | 4-18GHz | SMA-F | 18 | 0.6 | 4 | 0.5 | 1.6 | 1.4 | 10 | 1 | 1.00x1.00x.38 |
3 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD9-3S-10G | 3way | 2-18GHz | SMA-F | 15 | 1.3 | 5 | 1 | 2 | 1.8 | 10 | 1 | 4.46x2.46x.38 |
4 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD16-2S-4.25 | 4way | .5-8GHz | SMA-F | 15 | 4 | 8 | 1 | 1.9 | 1.6 | 20 | 5 | 6.25x2.97x.38 |
PD36-4S-9.2G | 4way | .5-18GHz | SMA-F | 15 | 4 | 8 | 1 | 1.9 | 1.6 | 20 | 5 | 6.25x2.97x.38 |
PD9-4S-10G | 4way | 2-18GHz | SMA-F | 16 | 1.6 | 6 | 0.8 | 1.8 | 1.5 | 30 | 10 | 4.0x2.5x.38 |
PD4-4S-11G | 4way | 4-18GHz | SMA-F | 18 | 1.2 | 10 | 0.8 | 1.8 | 1.6 | 30 | 10 | 1.98x1.46x.38 |
6 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD9-6S-10G | 6way | 2-18GHz | SMA-F | 15 | 1.9 | 12 | 1 | 2 | 1.5 | 25 | 7 | 6.00x4.00x.38 |
8 Way Power Divider
Model No. | Type | Freq (GHz) | Connectors | Isolation (dB, Min) | Insertion Loss (dB , Max) | Phase Balance (deg.,Max) | Amplitude Balance (dB, Max.) | VSWR Input (x.xx:1, max.) | VSWR Output (x.xx:1, max.) | CW Input(W) @ Load VSWR Out 1.2:1 | CW Input(W) @ Load VSWR Out 2.0:1 | Size |
PD9-8S-10G | 8way | 2-18GHz | SMA-F | 16 | 2.4 | 10 | 1 | 1.9 | 1.5 | 25 | 7 | 5.75x4.46x.38 |
