KRYTAR零偏置肖特基試探器

上(shang)架(jia)時期：2021-08-27 16:54:16 查看：1606

KRYTAR零偏置肖特基探測器專門用作現階段的高性能微波設備和系統軟件。KRYTAR探測器專為功率檢測、解析雷達性能指標、調整脈沖信號源、AM噪聲檢測、系統軟件監測和超寬帶和毫米波運用中的脈沖射頻檢測等運用而設計構思。

性狀。

10MHz—40GHz運轉(zhuan)幾(ji)率(lv)范圍內(nei)。

最好的(de)的(de)頻(pin)率響應的(de)。

使用進入和(he)輸(shu)送接(jie)器(qi)。

成都(dou) 市立維(wei)創展社會軟(ruan)件授權微商代理RADITEK車輛(liang)，那(nei)部分產(chan)品的型號具有外盤。車輛(liang)原裝機進口清關，安(an)全(quan)性能切實保障，歡迎大家質詢。

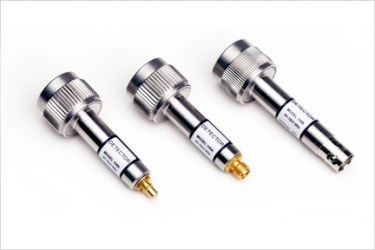

KRYTAR零偏置肖特基探測器

Model	Frequency Min (MHz)	Frequency Max (GHz)	Frequency Response	Maximum VSWR	Output Capacitance	Input Connector	Output Connector
203A	10	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	30 pF	2.4 mm Male	SMA Female
203B	10	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	30 pF	2.4 mm Male	BNC Female
203S	10	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	30 pF	2.4 mm Male	SMC Jack
203AK	10	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	30 pF	2.92 mm Male	SMA Female
203BK	10	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	30 pF	2.92 mm Male	BNC Female
203SK	10	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	30 pF	2.92 mm Male	SMC Jack
303A	100	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	3 pF	2.4 mm Male	SMA Female
303B	100	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	3 pF	2.4 mm Male	BNC Female
303S	100	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	3 pF	2.4 mm Male	SMC Jack
303AK	100	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	3 pF	2.92 mm Male	SMA Female
303BK	100	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	3 pF	2.92 mm Male	BNC Female
303SK	100	40	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz ± 1.5 dB to 40 GHz	1.35 to 20 GHz 1.50 to 26.5 GHz 2.00 to 40 GHz	3 pF	2.92 mm Male	SMC Jack
202A	10	26.5	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz	1.35 to 20 GHz 1.50 to 26.5 Ghz	30 pF	3.5 mm Male	SMA Female
202B	10	26.5	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz	1.35 to 20 GHz 1.50 to 26.5 Ghz	30 pF	3.5 mm Male	BNC Female
202S	10	26.5	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz	1.35 to 20 GHz 1.50 to 26.5 Ghz	30 pF	3.5 mm Male	SMC Jack
302A	100	26.5	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz	1.35 to 20 GHz 1.50 to 26.5 Ghz	3 pF	3.5 mm Male	SMA Female
302B	100	26.5	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz	1.35 to 20 GHz 1.50 to 26.5 Ghz	3 pF	3.5 mm Male	BNC Female
302S	100	26.5	± 0.5 dB to 20 GHz ± 0.8 dB to 26.5 GHz	1.35 to 20 GHz 1.50 to 26.5 Ghz	3 pF	3.5 mm Male	SMC Jack
201A	10	20	± 0.5 dB	1.35	30 pF	3.5 mm Male	SMA Female
201B	10	20	± 0.5 dB	1.35	30 pF	3.5 mm Male	BNC Female
201S	10	20	± 0.5 dB	1.35	30 pF	3.5 mm Male	SMC Jack
301A	100	20	± 0.5 dB	1.35	3 pF	3.5 mm Male	SMA Female
301B	100	20	± 0.5 dB	1.35	3 pF	3.5 mm Male	BNC Female
301S	100	20	± 0.5 dB	1.35	3 pF	3.5 mm Male	SMC Jack
109A	10	18.5	± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz	1.15 to 4.0 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz	30 pF	N Male	SMA Female
109B	10	18.5	± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz	1.15 to 4.0 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz	30 pF	N Male	BNC Female
109S	10	18.5	± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz	1.15 to 4.0 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz	30 pF	N Male	SMC Jack
209A	100	18.5	± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz	1.15 to 4 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz	3 pF	N Male	SMA Female
209B	100	18.5	± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz	1.15 to 4 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz	3 pF	N Male	BNC Female
209S	100	18.5	± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz	1.15 to 4 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz	3 pF	N Male	SMC Jack
