Teledyne防務網絡衰減器

發(fa)布(bu)信息精(jing)力(li)：2021-06-21 17:02:29   ;  閱讀：1510

Teledyne防務電子設備具備各種各色各樣各色各樣的仿真模擬保持衰減器，的工作幾率范疇為10MHz至26ghz。考慮到不計其數功能模塊在不計其數倍頻程范圍之內內操作，管控按鈕開關加速度不大于100ns，衰減數值把控好多達50dB，Teledyne防務電子器材產品的是可以提供您的非常規想要。

特征參數(shu)

頻點： 10MHz至26GHz；

帶寬使(shi)用： <1% 到多倍頻(pin)程；

設計：對接器、引腳和SM；

出口(kou)產品定義： EAR99；

與任何軟件ibms：變大器(qi)、改換器(qi)、合并器(qi)；

西安(an)市立維創展新材料技術(shu)是(shi)Teledyne的銷售商(shang)，提拱Teledyne的產品含蓋LDMOS、GaN、GaAs和InP。Teledyne護(hu)膚(fu)品線扶持寬頻(pin)寬、窄帶(dai)、脈沖造成的縮放器(qi)，頻(pin)率(lv)1MHz~220GHz，工作效率mW~10kW，優質推廣渠道提高Teledyne購貨，喜(xi)歡服務咨詢(xun)。

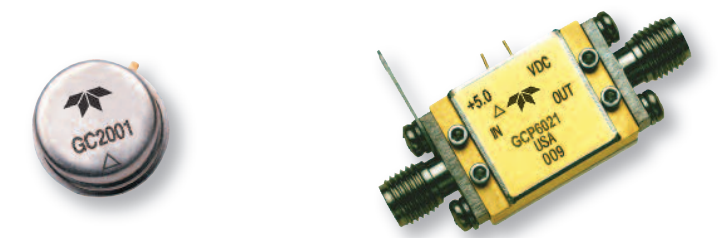

 Teledyne防務電子衰減器





Model





Frequency Range MHz

Insertion Loss dB

Typ.  Max. 0/50C

Attenuation dB

Typ.  Min. 0/50C





Typ.

SWR

In/Out

Max. 0/50C

Switching Speed

Typ. (ms) Max. (ms) 10-90%  100%



Control

Volts I(mA) Max.





Volts



Bias

I(mA)

Max.

Attenuators ? Available in TO-8 Attenuator, Surface Mount and SMA Packages (depending on model)

UTF-015

5-500

1.5

2.0

20

15

1.5

2.0

500

800

0 to 10

0 to 7

15

10


500-1000

2.0

2.5

20

15

1.6

2.1

500

800

0 to 10

0 to 7

15

10


5-500

2.0

2.6

36

30

1.3

2.0

2.0

125

0 to 15

0 to 7

15

15

GC1275

5-1000

2.3

2.8

30

25

1.6

2.0

2.0

125

0 to 15

0 to 7

15

15

(75Ω)

5-1200

2.5

3.0

27

23

1.6

2.0

2.0

125

0 to 15

0 to 7

15

15


5-500

2.0

2.5

36

31

1.5

2.0

2.0

125

0 to 15

0 to 7

15

15

GC2001

5-1000

2.0

2.5

30

25

1.5

2.0

2.0

125

0 to 15

0 to 7

15

15


5-2000

2.8

3.3

23

20

1.6

2.2

2.0

125

0 to 15

0 to 7

15

15


5-500

1.5

2.0

36

31

1.6

2.0

2.0

125

0 to 15

0 to 7

5

10

GC2002

5-1000

2.0

2.5

30

25

1.6

2.0

2.0

125

0 to 15

0 to 7

5

10


5-2000

2.5

3.0

23

20

1.7

2.2

2.0

125

0 to 15

0 to 7

5

10


5-500

2.0

2.5

33

27

1.5

2.0

75

200

1 to 15

0 to 7

15

20


500-1000

2.0

2.5

28

23

1.5

2.0

75

200

1 to 15

0 to 7

15

20

UTF-025

1000-2000

2.8

3.3

23

20

1.8

2.0

75

200

1 to 15

0 to 7

15

20


2000-2500

3.5

4.0

17

15

1.8

2.0

75

200

1 to 15

0 to 7

15

20


10-500

2.0

2.8

52

40

1.2

1.8

<1.5

9.0

0 to 15

0 to 10

15

12


500-1000

2.3

2.8

43

35

1.2

1.8

<1.5

9.0

0 to 15

0 to 10

15

12

GC2510

1000-2000

2.8

3.3

38

30

1.2

2.0

<1.5

9.0

0 to 15

0 to 10

15

12


2000-2500

3.0

3.5

35

28

<1.3

2.2

<1.5

9.0

0 to 15

0 to 10

15

12


10-500

2.0

2.8

52

40

1.2

1.8

200 hsec

1.0

0 to 15

0 to 10

15

12


500-1000

2.3

2.8

43

35

1.2

1.8

200 hsec

1.0

0 to 15

0 to 10

15

12

GC2530

1000-2000

2.8

3.3

38

30

1.2

2.0

200 hsec

1.0

0 to 15

0 to 10

15

12


2000-2500

3.0

3.5

35

28

<1.3

2.2

200 hsec

1.0

0 to 15

0 to 10

15

12


30-250

2.0

2.2

45

40

1.5

2.0

400

600

0 to -10

0 to 75

15

10

UTF-040

250-500

2.0

2.2

40

35

1.5

2.0

400

600

0 to -10

0 to 75

15

10


500-1000

2.0

2.5

35

30

1.5

2.5

400

600

0 to -10

0 to 75

15

10


100-500

2.0

2.5

45

40

1.7

2.0

0.5

2

0 to 15

0 to 10

15

10

UTF-030

500-1000

2.5

3.0

40

35

1.7

2.0

0.5

2

0 to 15

0 to 10

15

10


1000-2000

3.0

3.5

30

25

1.7

2.0

0.5

2

0 to 15

0 to 10

15

10


500-1000

2.3

2.8

43

35

1.2

1.8

<100 hsec

1.0

0 to 15

0 to 10

15

12

GC2534

1000-2000

2.8

3.3

38

30

1.2

2.0

<100 hsec

1.0

0 to 15

0 to 10

15

12


2000-2500

3.0

3.5

35

28

<1.3

2.2

<100 hsec

1.0

0 to 15

0 to 10

15

12


1000-2000

2.5

3.0

25.5

23.5

1.6

2.0

5

25

-2 to -10

0 to 40

15

50







Model





Frequency Range MHz

Insertion Loss dB

Typ.  Max. 0/50C

Attenuation dB

Typ.  Min. 0/50C





Typ.

SWR

In/Out

Max. 0/50C

Switching Speed

Typ. (ms) Max. (ms) 10-90%  100%



Control

Volts I(mA) Max.





Volts



Bias

I(mA)

Max.

Attenuators ? Available in TO-8 Attenuator, Surface Mount and SMA Packages (depending on model)


5-500

2.0

2.8

36

30

1.3

2.0

2.0

75

+2 to –10

0 to 15

15

40

GR2010^

5-1000

2.3

3.0

30

25

1.6

2.0

2.0

75

+2 to –10

0 to 15

15

40


5-2000

2.8

3.5

27

23

1.6

2.0

2.0

75

+2 to –10

0 to 15

15

40

UTF-0351

50-1000

2.0

2.5

25.5

23.5

1.6

2.0

5

25

-2 to -10

0 to 40

15

50


1000-2000

2.5

3.0

25.5

23.5

1.6

2.0

5

25

-2 to -10

0 to 40

15

50


100-1000

2.5

3.0

45

40

1.7

2.0

0.5

2.0

0 to 15

0 to 10

15

10

PSF-030-25

1000-2000

2.5

3.0

40

35

1.7

2.0

0.5

2.0

0 to 15

0 to 10

15

10


2000-4000

2.5

3.0

30

25

1.7

2.0

0.5

2.0

0 to 15

0 to 10

15

10

GRS6012

0.3-6000

2.0

4.5

20

18

1.8

2.0

<100 hsec

160 hsec

0 to -5

±5

3









Model





Frequency Range GHz

Insertion Loss dB

Typ. Max.

0/50C

Attenuation dB

Typ. Min.

0/50C





Typ.

SWR

In/Out





Max. 0/50C

Switching Speed

Typ. (ms) 10-90%





Max. (ms) 100%



Control Volts





I(mA)

Max.

Attenuators ? Available in CougarPak?  Connectorized Packages

GCP6021

2.0 - 6.0

1.5

2.5

17

15

1.5

2.1

3.8

4.5

5

26


3.0 - 5.0

1.6

1.8

16

15

1.5

1.8

3.8

4.5

5

26

GCP8022

4.0 - 7.0

2.4

2.9

40

38

1.5

1.7

2.5

4.7

5

52


3.0 - 8.0

3.0

3.5

40

37

1.5

1.7

2.5

4.7

5

52


5.0 - 8.0

2.2

2.7

22

20

2.0

2.2

2.0

4.5

5

25

GCP14021

8.0 - 14.0

2.0

2.5

21

19

1.6

1.8

2.0

4.5

5

25


14.0 - 15.0

2.8

3.0

22

20

1.3

1.5

2.0

4.5

5

25









Model





Frequency Range MHz

Typical Current Drain

Control Voltage= Control Voltage=

-10 V @ 0 V @

Min. Attenuation Max. Attenuation

V- V+ Vcon V- V+ Vcon

Linearity Specifications^ 10-1000 MHz

Attenuation Range: 0 to 20 dB

25°C Volts -55°/85°C

Typ. Max. Typ. Max.

Attenuator Linearizer ? Available in Linearized TO-8 Attenuator and SMA Packages

LG20011

5-2000

5.0 mA

24.0 mA

15.0 mA

5.0 mA

11.0 mA

2.5 mA

<±1.0 dB

<±1.5 dB

<±1.5 dB

<±2.0 dB
