ME7868A
Distributed Modular 2-port Vector Network Analyzer

1 MHz — 8 GHz
1 MHz — 20 GHz
1 MHz — 43.5 GHz

100 dB maximum

170 μs/point typical

50 dB maximum

N/A

ME7848A
VectorStar? Opto-Electronic Network Analyzers

70 kHz – 40, 70 GHz
850, 1310, 1550 nm Wavelengths

99 dB maximum

N/A

N/A

-91 dBm minimum

MS46131A
Modular 1 port Vector Network Analyzer

1 MHz — 8 GHz
1 MHz — 20 GHz
1 MHz — 43.5 GHz

N/A

230 μs/point, typical

50 dB maximum

N/A

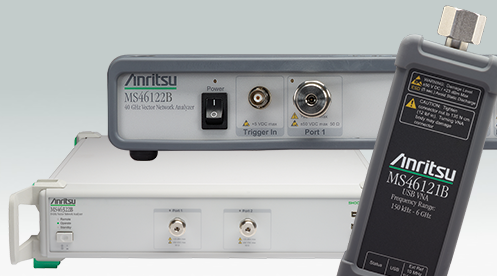

MS46121B
單端口 USB 矢量素材數據網絡剖析儀

40 MHz — 4 GHz
150 kHz — 6 GHz

N/A

120 μs/point, typical

42 dB, typical

N/A

MS46122B
小型 USB 矢量素材電腦網絡概述儀

1 MHz — 8 GHz
1 MHz — 20 GHz
1 MHz — 43.5 GHz

100 dB maximum

130 μs/point, typical

50 dB maximum

N/A

MS46322B
經濟型矢量網絡分析儀

1 MHz — 8 GHz
1 MHz — 20 GHz
1 MHz — 43.5 GHz

100 dB maximum

130 μs/point, typical

50 dB maximum

N/A

MS46522B
Shockline? 雙服務器端口高機械性能 VNA

50 kHz — 8.5 GHz
50 kHz — 20 GHz
50 kHz — 43.5 GHz
55 GHz — 92 GHz

最高 140 dB

30 微秒/點

50 dB maximum

身體不選用

MS46524B
Shockline? 4 端口處高穩定性 VNA

50 kHz — 8.5 GHz
50 kHz — 20 GHz
50 kHz — 43.5 GHz

最高(gao) 140 dB

30 微秒(miao)/點(dian)

50 dB maximum

隱疼用

MS4640B Series
VectorStar 網家族：微波射頻射頻、微波射頻、豪米波矢量圖網定性測試儀

70 kHz — 70 GHz

142 dB maximum

20 μsec/point

50 dB maximum

-129 dBm minimum

ME7838A4
VectorStar 4 端口處網絡帶寬 VNA ME7838E4/A4/D4

70 kHz — 110/125 GHz

最(zui)高 123 dB

30 微秒(miao)/點

最高 40 dB

最低 -113 dBm

ME7838A/E/D
VectorStar 寬帶網失量線上淺析儀（VNA)

70 kHz — 110 GHz
70 kHz — 110/125 GHz
70 kHz — 145 GHz
70 kHz - 220/226 GHz

mmWave Bands
170 GHz to 1.1 THz

124 dB max
124 dB max
125 dB max
120 dB max
100 dB max

30 μsec/point

40 dB max
40 dB max
40 dB max
40 dB max
30 dB max

-114 dBm min
-114 dBm min
-114 dBm min
-119 dBm min
-100 dBm min
