RADI-10-15-WR75-25WR-1-b波導分隔器RADITE

推送時段：2024-05-20 08:52:59 訪問：750

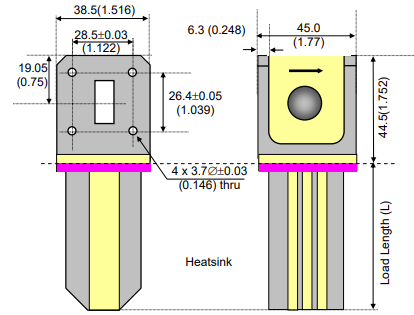

RADI-10-15-WR75-25WR-1-b波導隔離器RADITE

　　RADI-10-15-WR75-25WR-1-b波導隔離器是RADITEK波導隔離器(qi)，工作頻率(lv)為10GHz至(zhi)15GHz，功率(lv)為1-50w。具體參數信息如(ru)下：

Specifications	5%BW	Full	Full	Full	Full	Units
Frequency	10-15	10-15	10-15	10.7-11.5	10.70-12.75	GHz
Room/Over Temp		RT/OT	RT/OT
nsertion loss	0.2	0.3/0.4	0.3/0.5	0.3	0.25	dB maximum
lsolation	20	23/20	20/18	20	20	dB minimum
VSWR	1.20	1.15/1.25	1.25/1.30	1:22	1.22	:1
Reverse Power	120.40	25	5	1	1	Watts
Operating temperature	40 to +85	20 to 257 -10 to +70	20 to 25/ -10 to +70	-30 to +70	-30 to +70	℃
Storage temperature	-50 to +105	-50 to +105	-50 to +105	50 to +105	50 to +105	℃
Humidity	to 95%	to 95%	to 95%	to 95%	to 95%	Condensin
Size			45x90x38			mm

Specifications	Full	Full	Full	Full		Units
Frequency	10-13	10-13	10-13	10.70-12.75	1095-12.75	GHz
Room /Over Temp	RT/OT	RT/OT	RT/OT	RT/OT
Insertion loss	0.25/0.40	0.25/0.40	0.3/0.4	0.3/0.35	0.25	dB maximum
lsolation	20718/	20/18/	23/20	20/19	20	dB minimum
VSWR	1.25/1.30	1.25/1.3	1.15/1.25	1.20/1.25	1.22	:1
Reverse Powe	1	10	40	15	1	Watts
Forward Power	1		2	300		Watts
Operating temperature	oom /-30 to +70	oom 1-30 to +70	20 to 25/ -10 to +70	-10 to +50	-30 to +70	℃
Storage temperature	-50 to +105	-50 to +105	-50 to +105		50 to +105	℃
Humidity	to 95%	o 95%	to 95%		to 95%	Condensing
Size	45x85x38.5	45x105x38.5		45x110x38.3		mm

Specifications	Full	Full	Full	Full		Units
Frequency	13-14.5	13.75-14.50	13.75-14.70	14.0-14.5	14.0-15.0	GHz
Room /Over Temp	OT	RT/OT
Insertion loss	0.3	0.3/0.4	0.3	0.3	0.3	dB maximum
solation	20	23/20	19	20	20	dB minimum
VSWR	1.25	1.15/1.25	1.20:1	1.15:1	1:25	:1
Reverse Power	1	40		1	1	Watts
Forward Power (Peak)		2				Watts
Operating temperature	-35 to +80	20 to 25/ -10 to +70	-30 to +70	30 to +70	-30 to +70	℃
Storage temperature	-50 to +105	50 to +105	50 to +105	50 to +105	50 to +105	℃
Humidity	to 95%	o 95%	to 95%	o 95%	to 95%	Condensing
Size	45x115x385					mm

佛山市立維創展科技信息代里權代里RADITEK微波射(she)頻(pin)隔絕器和弧形(xing)器廠品，方面具體型號常備外盤。廠品正品美(mei)國進口，重量做到，喜歡咨詢服務。
