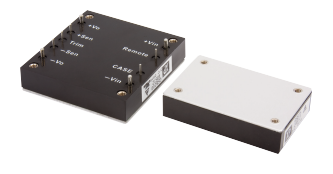

XP power QSB產品75-350W DCDC主機電源模塊電源

發布了周期：2024-04-11 09:01:27 挑選：1086

　　XP Power的QSB編DC/DC外接電源線包塊，輸出的熱效應范圍之內在75~350W內，是隔離式、高效、性價比最高性且安穩的外接電源線克服方式。此類包塊采取了發達的集成運放開發和技能，以能提供非常出色的性能參數、高效、性價比最高性率和可信度性。


　　該系列作品交流電源開關方案擁有多重金橋銅業跨接線的截面積大小和配資，分為有差異的插入和讀取電流比率，以要求各樣用于的供給。其工做溫度因素比率包含-40℃至+100℃，用于了高導出黏度設計的，要在不足的地方內打造更高一些的導出讀取。于此，交流電源開關方案兼容底板保壓，要保護正常的散熱器耐磨性，有時候可依據即遠程訪問開/關和即遠程訪問傳器開展掌控，保證進一步智能化系統化的控制。

　　產品型號：

Models and Ratings QSB75/100 XP
nput Woltage	Otnut Vltag	Output Current	Input Current		Ehiclend	Model Number
nput Woltage	Otnut Vltag	Output Current	No Load	Full Load	Ehiclend	Model Number
9-36VDC (24V nominal)	3.3V	12.00 A	50 mA	2.04 A	81.0%	SB7524S3V3
	5.0V	12.00 A	50 mA	2.98 A	84.0%	QSB7524S05
	12.0V	6.25A	50 mA	3.64 A	86.0%	QSB7524S12
	15.0V	5.00A	50 mA	3.64 A	86.0%	QSB7524S15
	24.0V	3.12 A	50 mA	3.63 A	86.0%	QSB7524S24
18-75VDC (48V nominal)	3.3V	12.00 A	30 mA	1.10 A	82.0%	QSB7548S3V3
	5.0V	12.00 A	30 mA	1.47 A	85.0%	QSB7548S05
	12.0V	6.25 A	30 mA	1.82 A	86.0%	OSB7548S12
	15.0V	5.00 A	30 mA	1.80 A	870%	OSB7548S15
	24.0V	3.12 A	30 mA	1.80 A	870%	OSB7548S24
9-36 VDC (24V nominal)	3.3V	30.00A	120 mA	4.80 A	86.0%	OSB10024S3V3
	5.0V	20.00 A	120 mA	4.82 A	86.5%	OSB10024S05
	12.0V	8.30 A	80 mA	4.80 A	86.5%	QSB10024S12
	15.0V	6.70 A	80 mA	4.84 A	86.5%	QSB10024S15
	24.0V	4.17 A	80 mA	4.79 A	870%	OSB10024S24
18-75VDC (48V nominal)	3.3V	30.00A	60 mA	2.37 A	88.0%	QSB10048S3V3
	5.0V	20.00 A	60 mA	2.37 A	88.0%	OSB10048S05
	12.0V	8.30 A	30 mA	2.36A	88.0%	OSB10048S12
	15.0V	6.70 A	30 mA	2.38 A	88.0%	OSB10048S15
	24.0V	4.17 A	30 mA	2.37 A	88.0%	QSB10048S24

Models &Ratings					QSB150-350
nput Voltage	Output Woltage	Output Current	Input Curent*		Eclency	Model Number
nput Voltage	Output Woltage	Output Current	No Load	Ful Load	Eclency	Model Number
9-36VDC (24V nominal	3.3V	30.00 A	200 mA	4.75 A	870%	OSB15024S3V3
	5.0V	30.00A	200 mA	719 A	870%	QSB15024505
	12.0V	12.50 A	100 mA	710 A	88.0%	OSB15024S12
	15.0V	10.00 A	100 mA	7.19 A	870%	OSB15024S15
	24.0V	6.50 A	100 mA	734 A	88.0%	OSB15024S24
18-75VDC 48V nominal	3.3V	30.00A	100 mA	2.34 A	88.0%	OSB15048S3V3
	5.0V	30.00 A	100 mA	3.47 A	90.0%	OSB15048S05
	12.0V	12.50 A	50 mA	3.44 A	91.0%	OSB15048S12
	15.0V	10.00 A	50 mA	3.47 A	90.0%	OSB15048S15
	24.0V	6.50A	50 mA	3.61 A	90.0%	OSB15048S24
10-36VDG 24V nominal	3.3V	S?.00 A	150 mA	Z90 A	870%	OSB20024S3V3
	5.0V	40.00 A	150 mA	9.58 A	870%	QSB20024S05
	12.0V	16.70 A	100 mA	9.71 A	86.0%	OSB20024S12
	15.0V	13.30 A	100 mA	9.67 A	86.0%	OSB20024S15
	24.0V	8.30 A	100 mA	9.54A	870%	OSR20024S2
	48.0V	4.20 A	60 mA	9.77 A	86.0%	OSB20024S48
18-75VDC 148V nominal	3.3V	40.00 A	80 mA	3.13 A	88.0%	OSB20048S3V3
	5.0V	40.00 A	80 mA	4.69 A	89.0%	OSB20048S05
	12.0V	16.70 A	60 mA	4.74 A	88.0%	QSB20048S12
	15.0V	13.30 A	60 mA	4.72 A	88.0%	OSB20048S15
	24.0V	8.30 A	60 mA	772 A	88.0%	OSB20048S24
	48.0V	4.20 A	50 mA	4.83 A	870%	OSB20048S48
18-36 VDC 24V nominal	3.3V	70.0 A	130 mA	10.94 A	88.0 %	OSB35024S3V3
	5.0V	70.0 A	250 mA	16.29 A	89.5 %	OSB35024S05
	12.0V	29.2 A	220 mA	15.96 A	91.5%	OSB35024S12
	24.0V	14.6 A	40 mA	16.22 A	90.0%	OSB35024S24
	28.0V	12.5 A	50 mA	16.03 A	91.0%	OSB35024S28
	48.0V	Z3 A	60 mA	16.22 A	90.0%	OSB35024S48
36-75VDC 48 V nominal	3.3V	70.0 A	80 mA	5.41 A	89.0%	OSB35048S3V3
	5.0V	70.0 A	120 mA	8.01 A	91.0%	OSB35048S05
	12.0V	29.2 A	100 mA	Z89 A	92.5%	OSB35048S12
	24.0V	14.6 A	40 mA	798 A	91.5%	OSB35048S24
	28.0V	12.5 A	30 mA	788 A	92.5%	OSB35048S28
	48.0V	Z3 A	60 mA	793 A	92.0%	OSB35048S48

西安市立維創展自動化限制集團公司認證加盟代理銷售員XP POWER交流電源傳感器商品。商品例如：AC-DC電源線、DC-DC轉變成器、直流電AC-DC主機電源、直流高壓DC-DC轉為器、rf射頻主機電源開關控制系統、三相四線制主機電源開關。邀請了解。
