Features
- 1000 – 2000 MHz
- Low Loss
- High Isolation
- Tight Amplitude Balance
- 90 deg Quadrature
- Surface Mountable
- CTE Matched
- L-Band
- Tape and Reel Option
Specifications

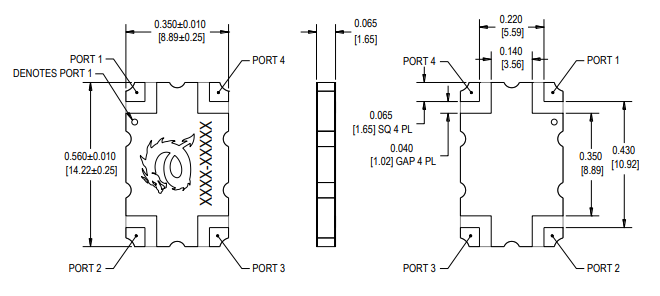

- Size: .560 x .350 inches
- Frequency: 1000-2000 MHz
- Power: 85 W
- Insertion Loss: .18 dB
- Amplitude Balance: ± .55
- Isolation: 24 dB
- VSWR: 1.18
- Phase Balance: ± 3
